AFFIRMATION LIBRARY

WORK IN PROGRESS
In collaboration with Extrapolation Factory, Agency-Agency.

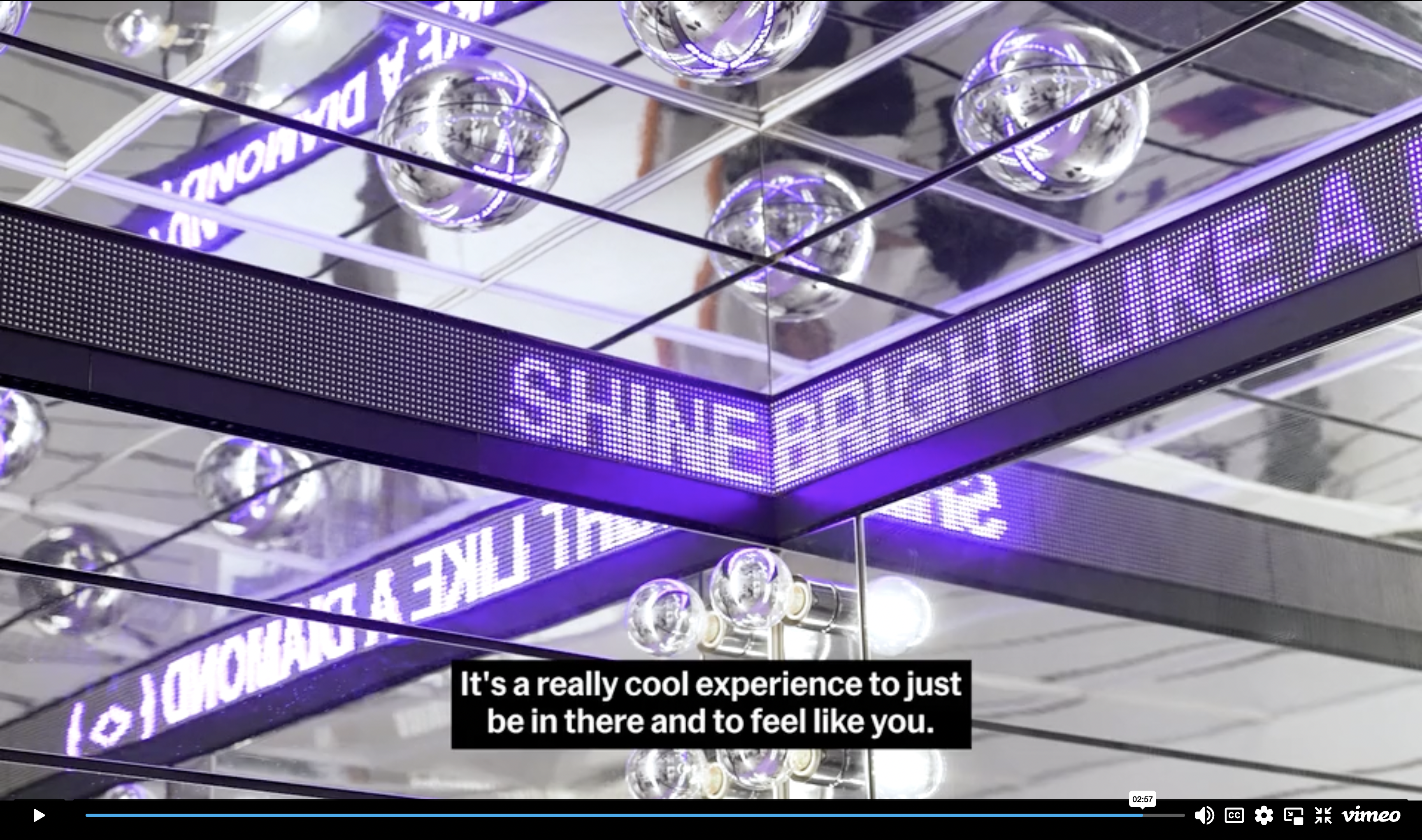

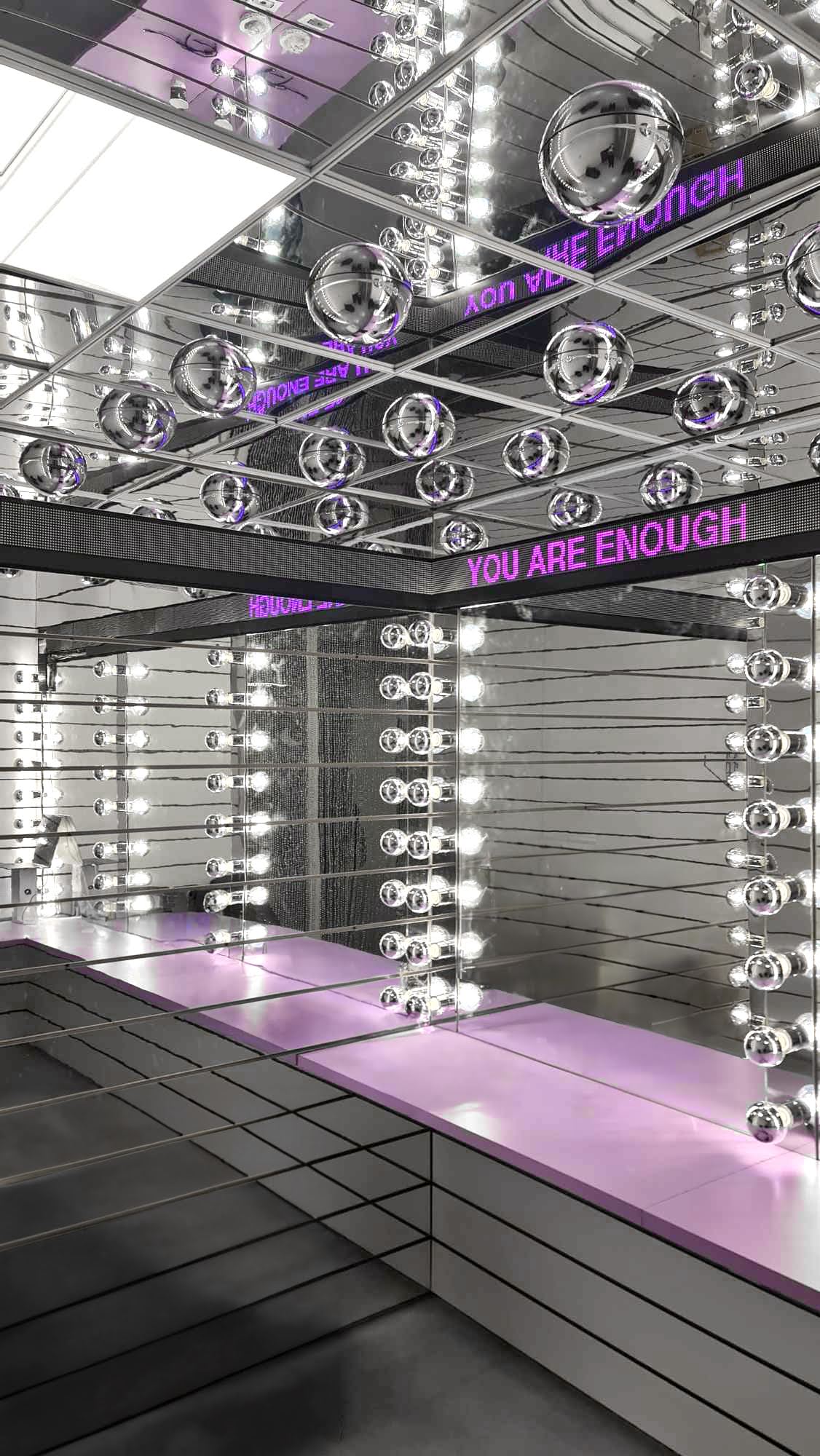

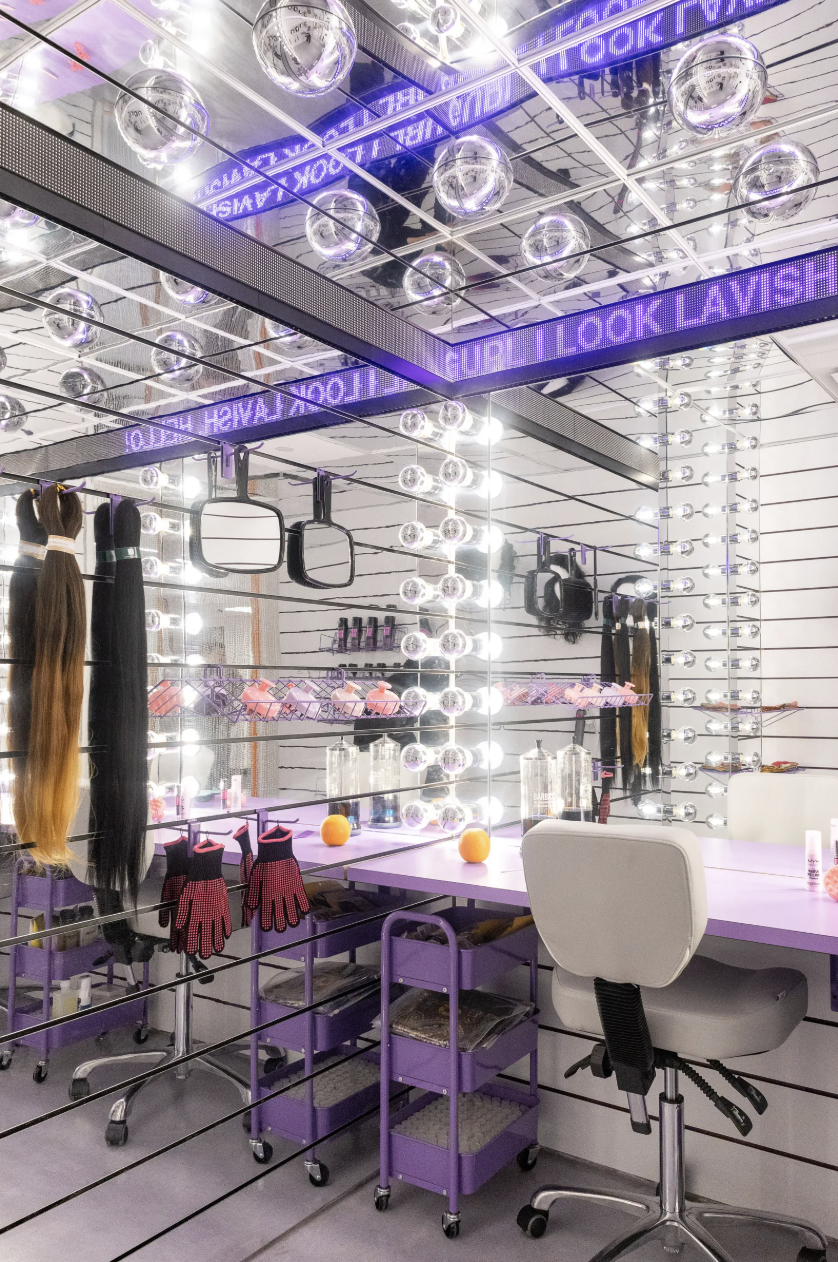

            On this MoMA commissioned project, I led the designed, fabricated, and installation the interactive message board for sending love and support messages to redefine the concept of beauty in the salon space at the Ali Forney Center, a drop-in center for homeless LGBT youths.

Iteration 01

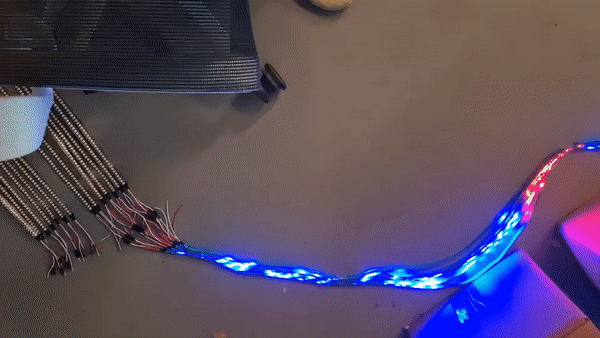

The system consists of a kiosk made from a Raspberry Pi. The text will be displayed on an LED screen made from addressable LED strips and stored in a Google Sheet as a database of affirmations.

Iteration 02

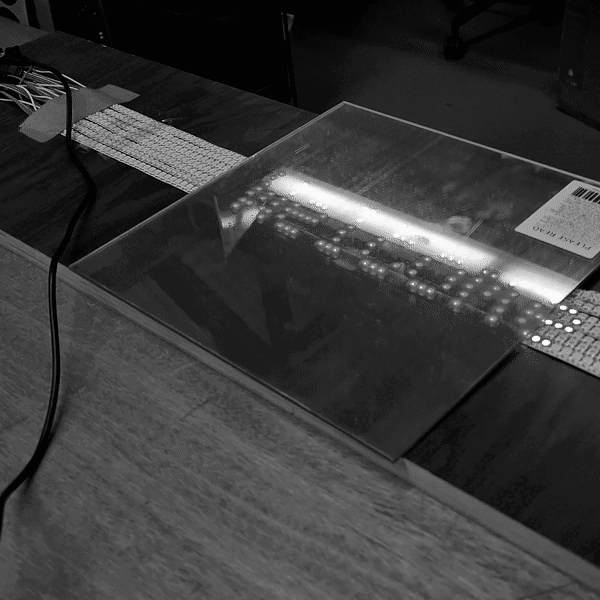

Utilizing Raspberry Pi and Matrix bonnet, and 16x32 RGB Matrix The system programed in circuit Python.

Iteration 03 (Final)

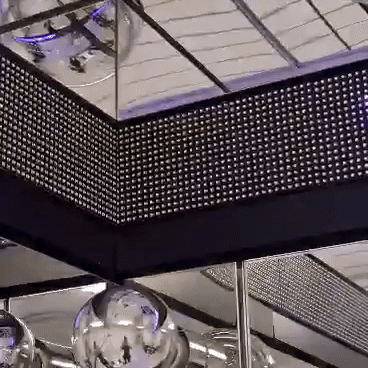

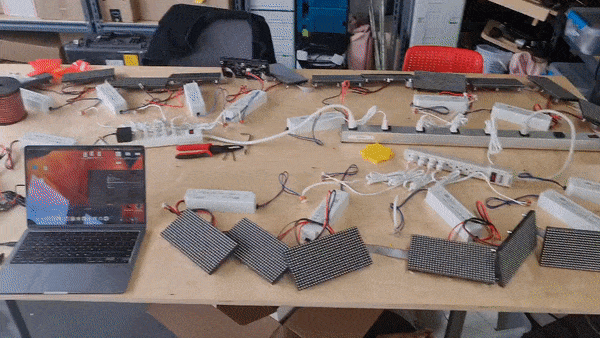

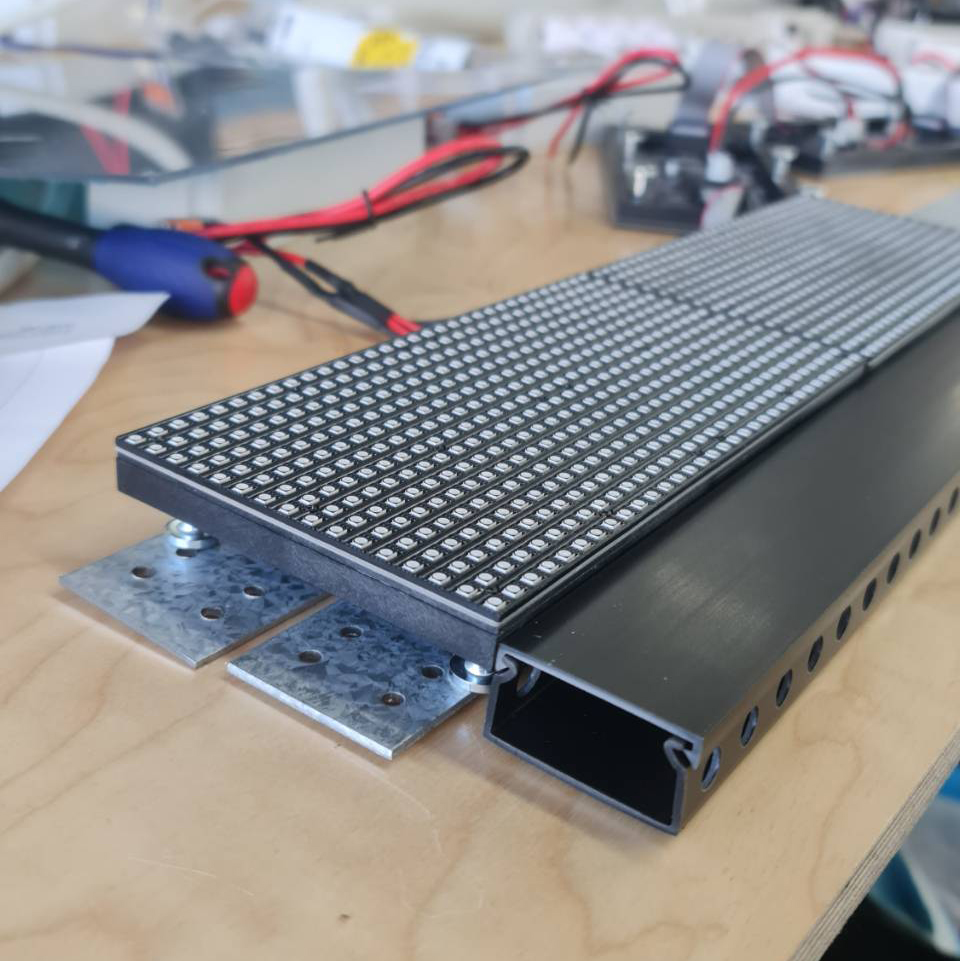

Utilizing adafruit Matrix Portal S3 and 26 pieces of 16x32 RGB Matrix chained together. The system programed in circuit Python, linked google sheet to Adafruit IO using IFTTT, allow users to input texts in google form to scroll on the display.
